Intel C5SoC User Manual Download: Here
Documents
| 标题 | 版本 | 大小 | 日期 | 下载 |
|---|---|---|---|---|
| VEEK-MT2-C5SOC User Manual | 1.0.0 | 2,948(KB) | 2016-09-07 |
Linux BSP(Board Support Package)
| 标题 | 版本 | 大小 | 日期 | 下载 |
|---|---|---|---|---|
| Readme.txt | 2(KB) | 2016-09-07 | ||
| Quartus GHRD (Golden Hardware Reference Design) | 2016-09-07 | |||
| LXDE Desktop Image File | 2016-09-07 | |||
| Linux Console Image File (with Framebuffer) | 2016-09-07 |
CD-ROM
| 标题 | 版本 | 大小 | 日期 | 下载 |
|---|---|---|---|---|
| VEEK-MT2-C5SOC CD-ROM | 1.0.0 | 2016-09-07 | ||
| Altera C5SoC CD-ROM | 14.1 | 2016-06-29 |
友晶科技所发表之范例程式码，基於免费分享之原则，不提供任何形式的讲解或修改。如需进一步范例程式码讲解或修改的协助，我们将转至 "设计服务部门" 评估。
本授权条款允许使用者於使用所有友晶及 Intel 开发板时，得以重制、散布、传输以及修改友晶科技提供的源码，但不得为商业目的之使用。使用时必须於引用处表彰友晶科技 (Terasic Inc.) 之商号。
VEEK-MT2-C5SoC Demonstrations

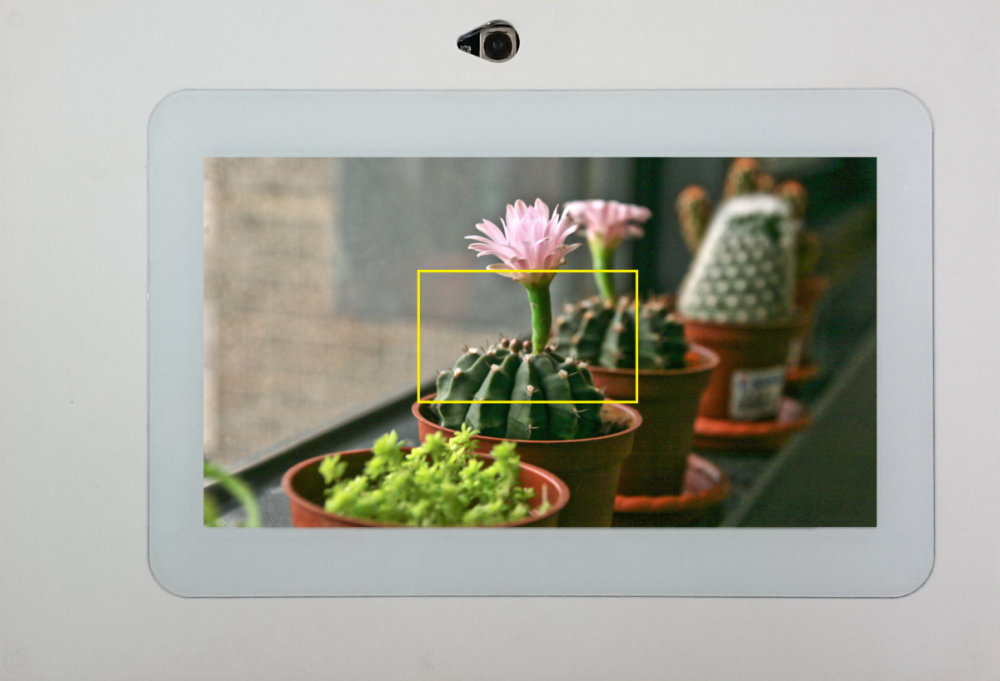

VEEK-MT2-C5SoC Camera Demonstration
This demonstration shows a digital camera reference design using the 8 megapixel CMOS sensor with auto focus and 7-inch LCD modules on the VEEK-MT2-C5SoC.
The CMOS sensor module sends the raw image data to the FPGA on the C5SoC board, the FPGA on the board handles image processing and converts the data to RGB format and, displays the image on the LCD module.

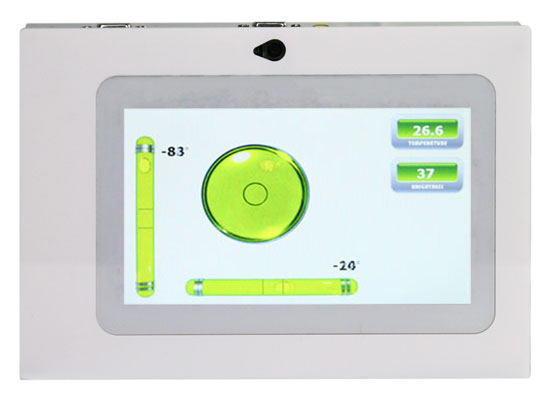

VEEK-MT2-C5SoC Sensing Demonstration
This design utilizes an embedded NIOS II CPU to communicate with the on-board digital accelerometer as well as the ambient light sensor. The accelerometer outputs as a level ,display and the readings for the ambient light are displayed in the upper left-hand corner.

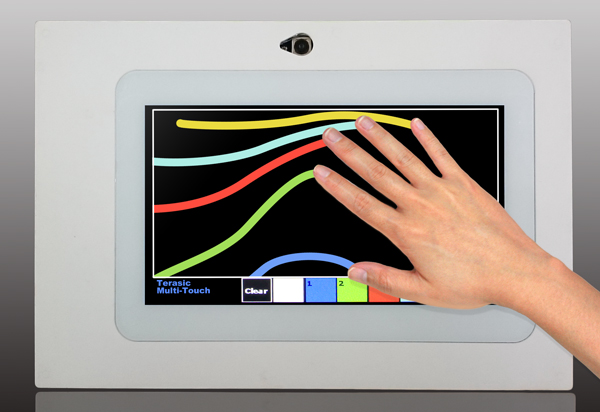

VEEK-MT2-C5SoC Painter Demonstration
This reference design showcases VEEK-MT2's sensitive capacitive touch-screen capabilities. Supporting 5-point coordinates and multi-touch gestures, this demonstration allows users to paint with five fingers. Gestures that are drawn on the canvas are displayed in the gesture indicator box left of the color palette.

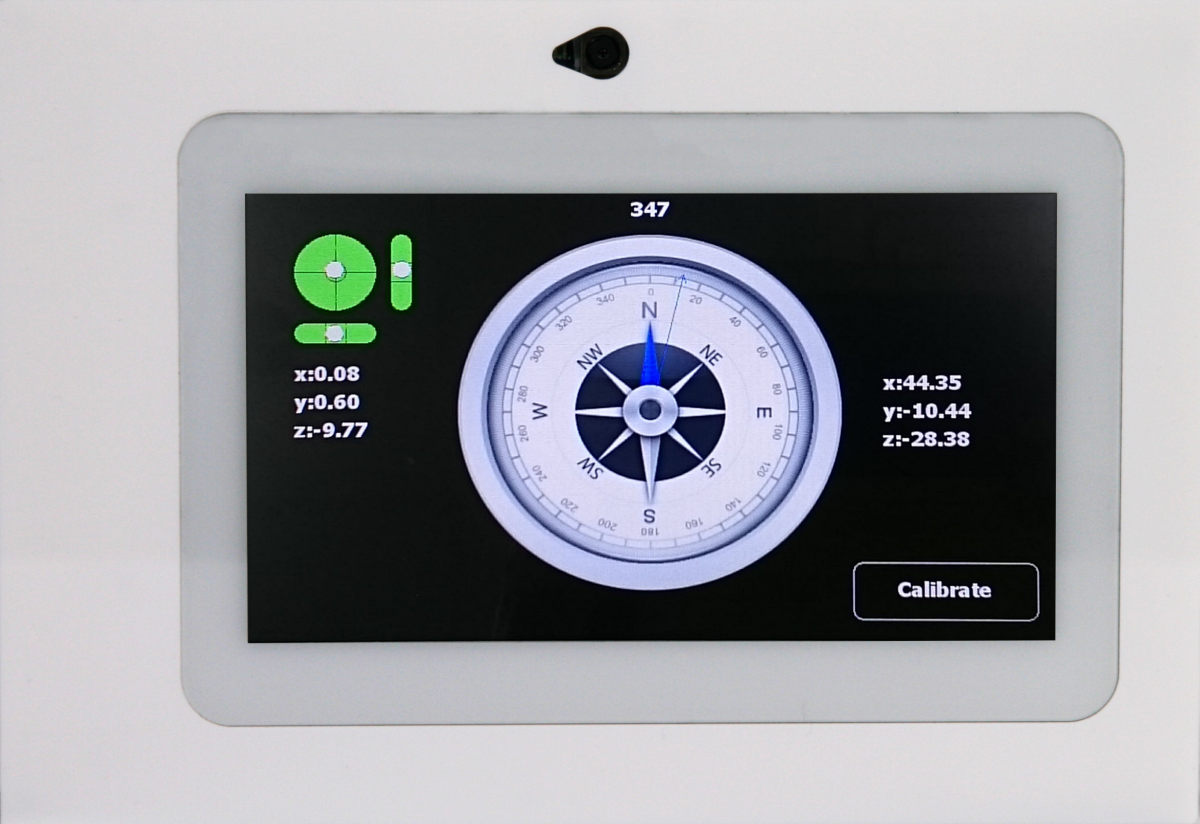

VEEK-MT2-C5SoC E-Compass Demonstration
This demonstration shows an e-compass on the LCD panel based on the information measured by the accelerometer and the magnetometer in the MPU9250.
