DE10-Nano Kit
- Size：68.6x107mm (below picuture will updated later)

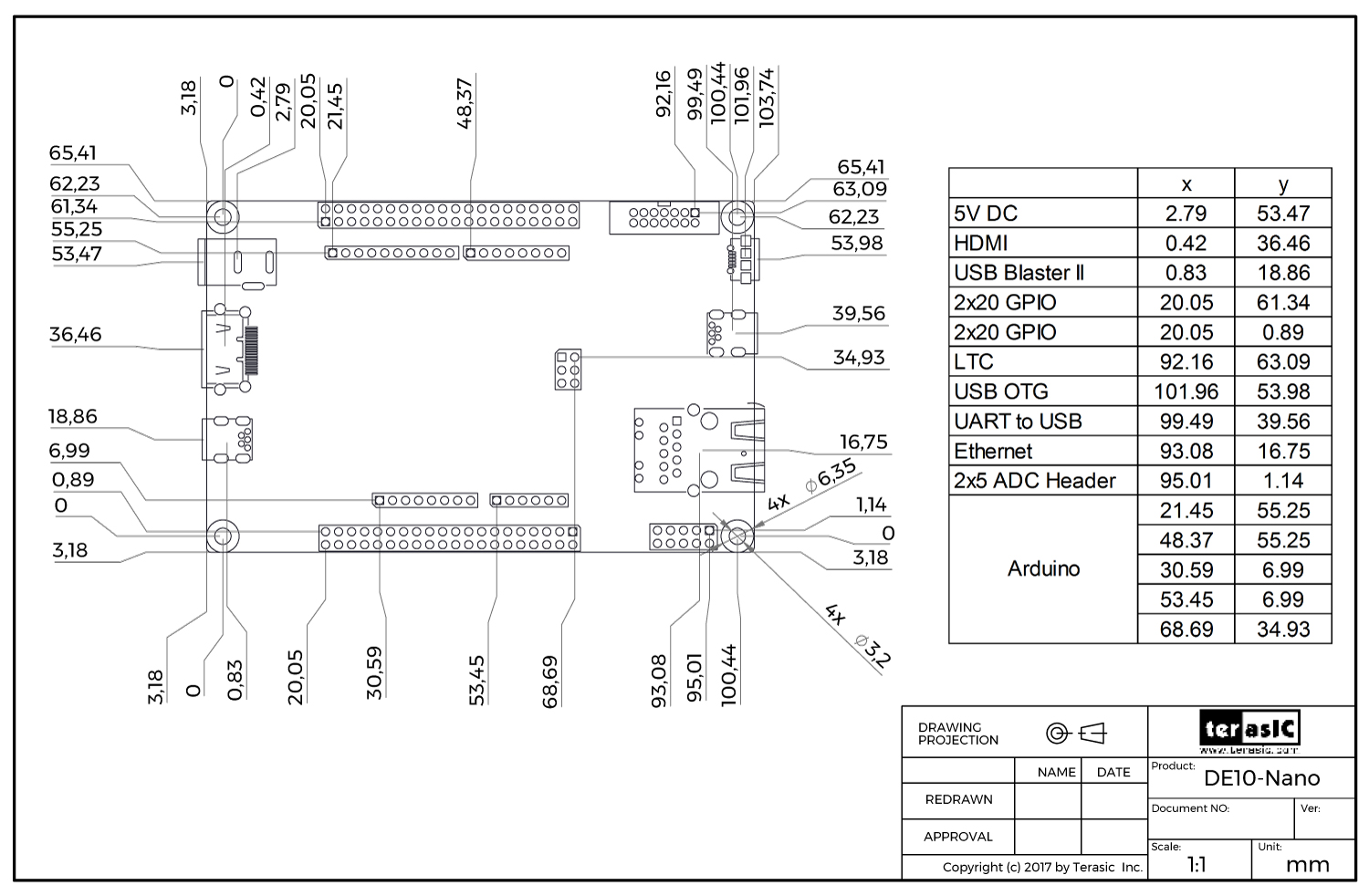

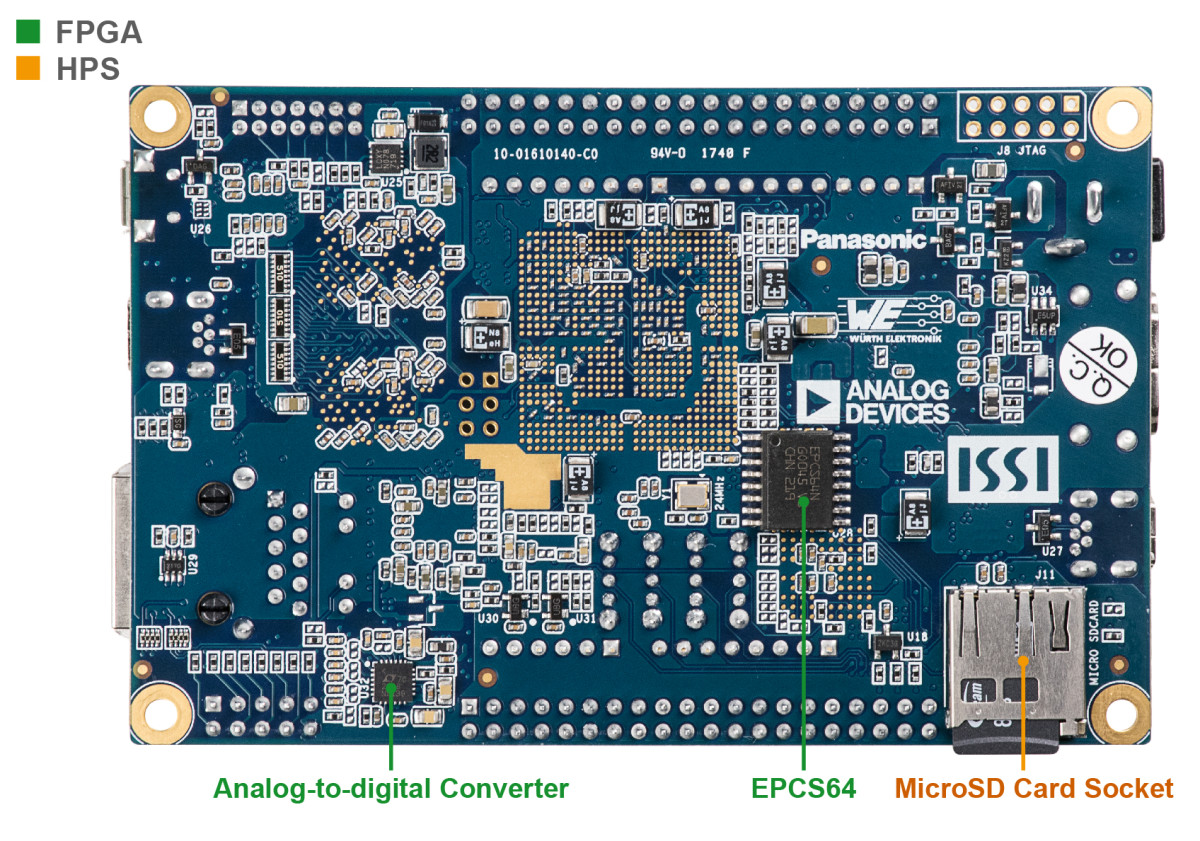

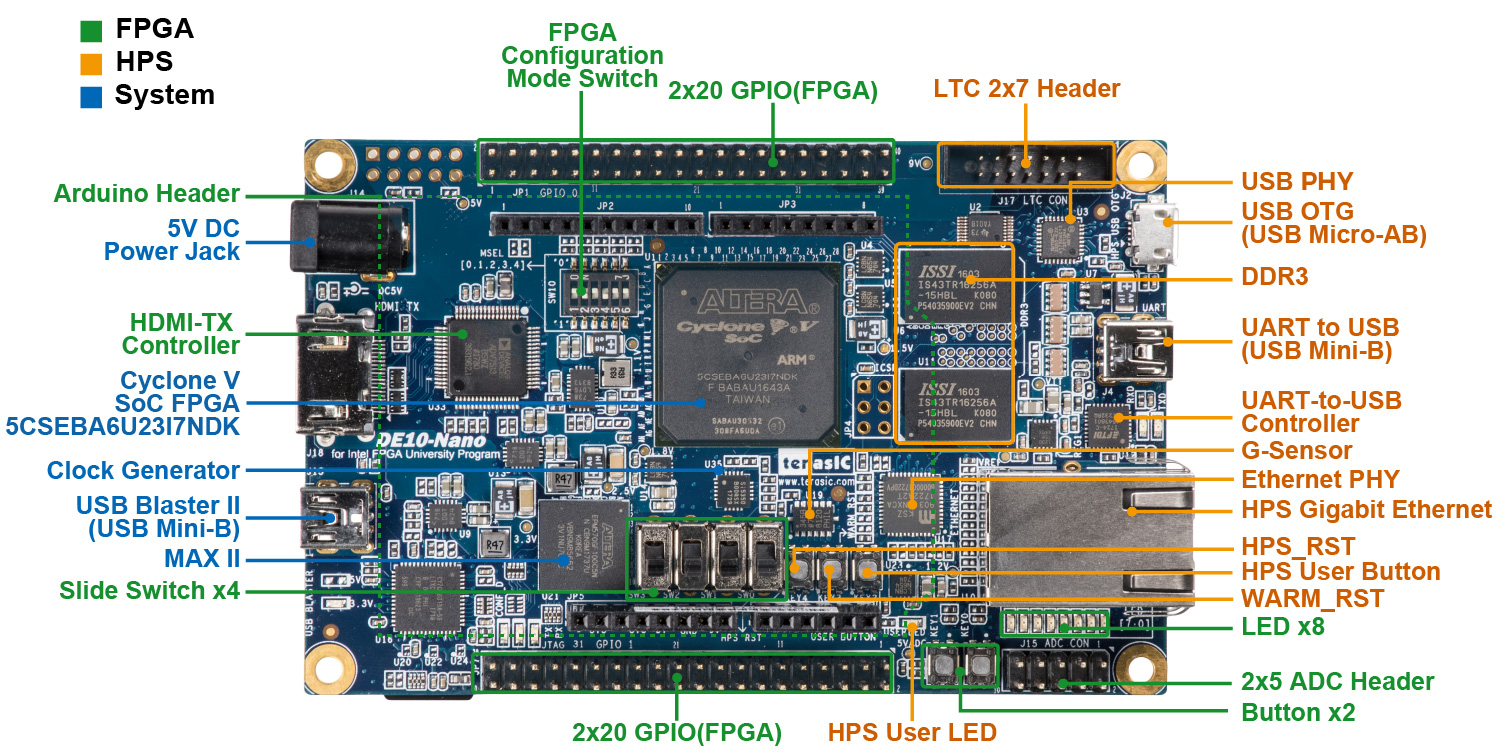

DE10-Nano Board Mechanical Layout
| Board Feature |
x-axis (mm) |
y-axis (mm) |
| 5V DC |
2.79 |
53.47 |
| HDMI |
0.42 |
36.46 |
| USB Blaster II |
0.83 |
18.86 |
| 2x20 GPIO |
20.05 |
61.34 |
| 2x20 GPIO |
20.05 |
0.89 |
| LTC |
92.16 |
63.09 |
| USB OTG |
101.96 |
53.98 |
| UART to USB |
99.49 |
39.56 |
| Ethernet |
93.08 |
16.75 |
| 2x5 ADC Header |
95.01 |
1.14 |
| Arduino* Header |
21.45 |
55.25 |
| Arduino* Header |
48.37 |
55.25 |
| Arduino* Header |
30.59 |
6.99 |
| Arduino* Header |
53.45 |
6.99 |
| Arduino* Header |
68.69 |
34.93 |
|
|
