Development Kit Contents
Hardware
- Intel®

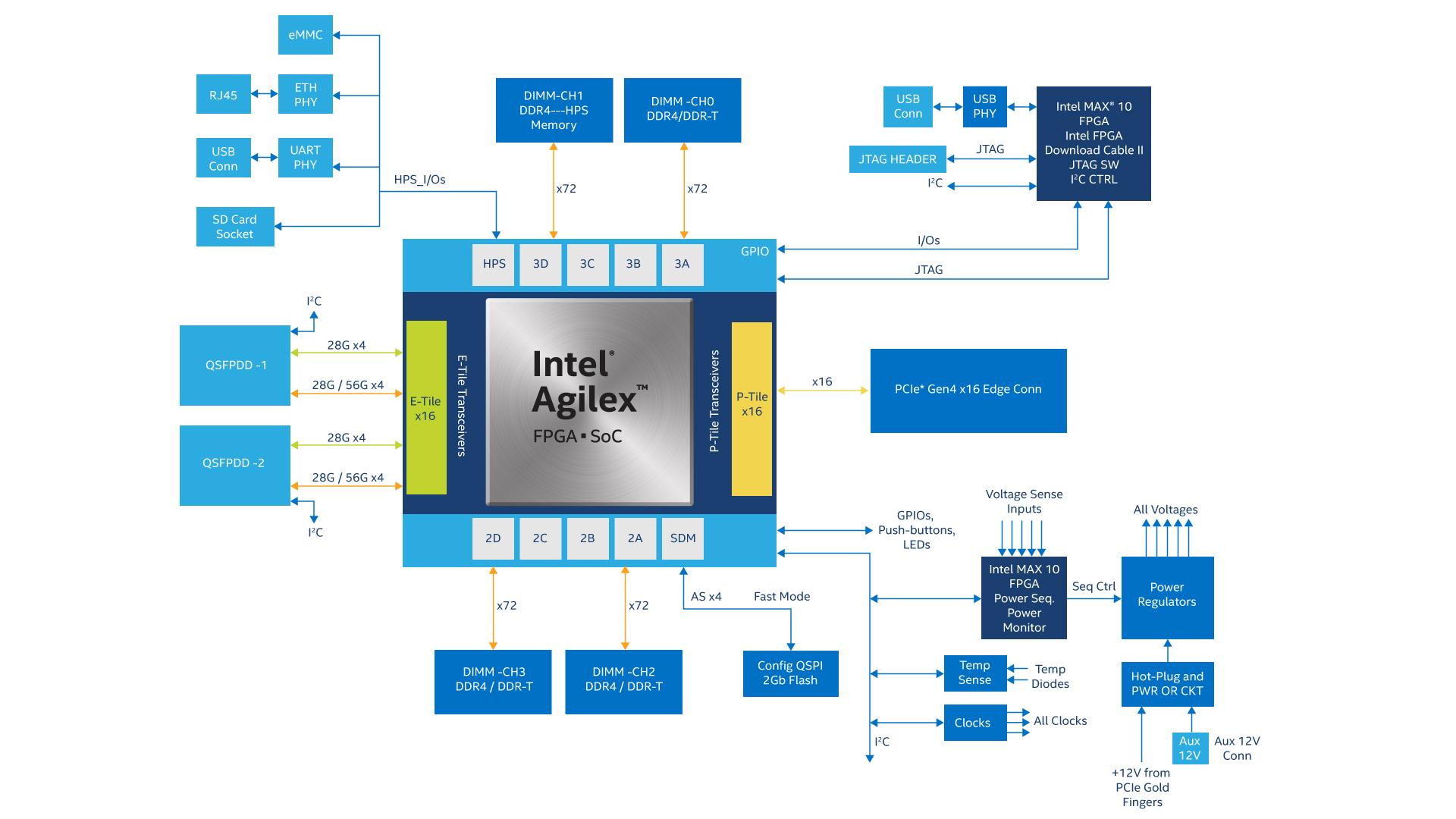

Agilex™ F-Series FPGA Development Board
- Mounted with Intel Agilex F-Series FPGA, 1400 KLE, 2486A package
- 1X PCIe x16 Gen 4 golden finger connected to P-Tile transceivers
- Support x1/x4/x8 mode
- 3X DDR4 DIMMs sockets
- Support 72 bits DDR4/DDR-T module in FPGA fabric interface
- 1X DDR4 DIMM socket
- Support 72 bits DDR4 module for HPS memory interface
- 1X DDR4 DIMM module (8GB each)
- 2X standard quad small-form-factor pluggable double density (QSFP-DD) cages
- HPS interface supporting: ETH, UART, SD card socket, eMMC and Mictor connector
- AC adapter power and USB cables
Software
1
- Design examples
- Board Update Portal design
- Board Test System (BTS) design
- Documentation
- Intel Agilex F-Series FPGA Development Kit User Guide
- Quick Start Guide
- Board design files
- Intel Quartus® Prime Pro Edition software (required)
- Download and unzip the Intel Agilex F-Series FPGA Development Kit installer first. Install the Board Test System.
- A one-year license for the Intel Quartus®
Prime Pro Edition design software is available upon purchase of the kit. License activation instructions
and FAQs
.
