Development Kit Contents

Hardware

• Intel^® Agilex™ F-Series Transceiver-SoC Development Board
  • Mounted with Intel Agilex F-Series FPGA, 1400 KLE, 2486A package

• Transceiver interfaces include MXP, QSFP-DD and QSFP28

• On-board DDR4 memory (8GB)

• SODIMM interface
  • 8GB DDR4 SODIMM module (included)

• IO48 Interface for HPS daughtercards
  • HPS OOBE daughtercard (included)
  • HPS NAND daughtercard (included)

• QSPI flash daughtercard

• AC adapter power cables

• Ethernet and USB cables



Software ¹

• Board Update Portal design

• Board Test System (BTS) design

• Documentation
  • Intel Agilex F-Series Transceiver-SoC Development Kit User Guide
  • Quick Start Guide

• Board design files

• Intel Quartus^® Prime Pro Edition software (required)
  • 1 year license
  • Nios^® II processor (optional)
  • Intel FPGA intellectual property (IP) library (optional)

• Intel SoC FPGA Embedded Development Suite (EDS) (optional)

• Arm* Development Studio (DS) (optional)
  • Three-year license



1. Download and unzip the Intel Agilex F-Series Transceiver-SoC Development Kit installer first. Install the Board Test System.
2. A one-year license for the Intel Quartus Prime Pro Edition design software is available upon purchase of the kit. License activation instructions and FAQs .

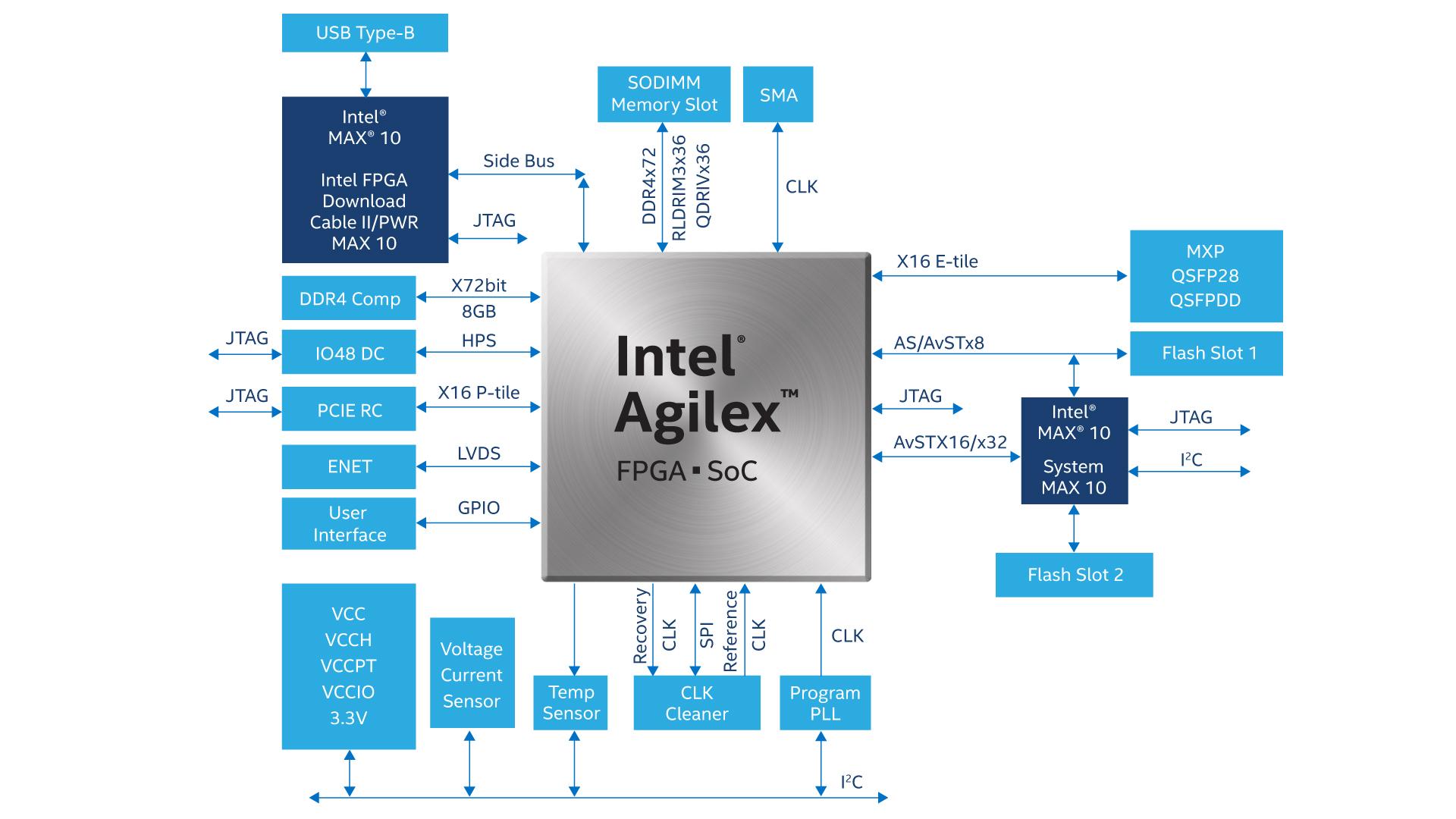

Intel® Agilex™ F-Series Transceiver-SoC Development Kit Block Diagram
