Atum A5 System Side
- FPGA: A5ED065BB32AE4SR0 (656K LEs)
- Dimension: 155 mm x 160 mm
- Onboard USB-Blaster II
- Support ASx4 Configure Mode with 512Mbits QSPI Flash
- Active Heatsink
- Board Management System
- ◦ Power Monitor
- ◦ Temperature Monitor
- ◦ Auto Fan Control
FPGA Side
- HDMI Output Port (Support 1080P)
- DDR4-A: 4GB DDR4 with 32-bit data bus (no ECC). Shared with HPS
- DDR4-B: 4GB DDR4 with 32-bit data bus (no ECC)
- One FMC+ connector with 16 transceivers
- One QSFP+ Port for 40 GbE network interface

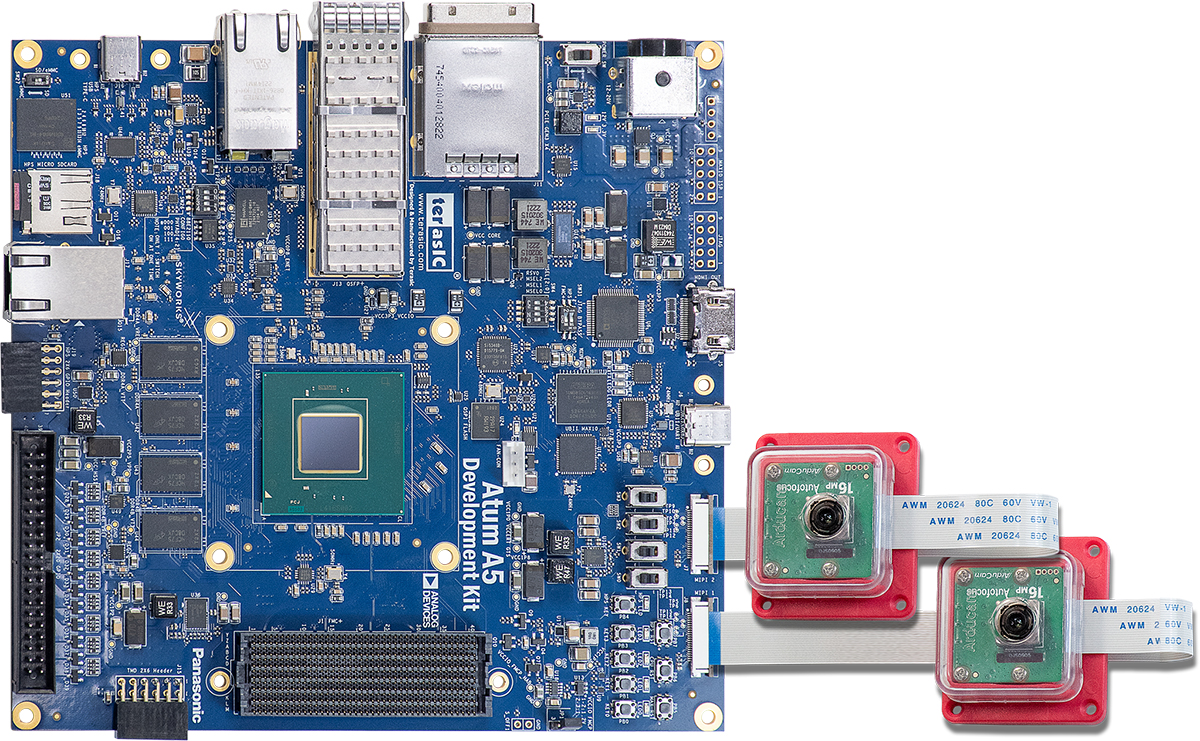

- Two 2-lanes MIPI Connector for Camera/Display
- One PCIe Calbing Gen3 x4 Socket
- One 3.3V 2x20 DE-GPIO Header
- One 3.3V 2x6 TMD Header
- User LED x4, Button x4, DIP Switch x4
HPS Side
- MicroSD Socket and 8GB eMMC
- DDR4-A: 4GB DDR4 with 32-bit data bus (no ECC). Shared with FPGA
- Gigabit Ethernet PHY + RJ45
- USB 3.1 Gen1 (5Gbps; use 1 transceiver) with USB Type-C connector
- UART to USB Port
- LED x1, Button x1, Cold Reset Button
- One 3.3V 2x6 GPIO Header. Including One I2C Bus
Software Support
- FPGA Example Code
- Linux BSP

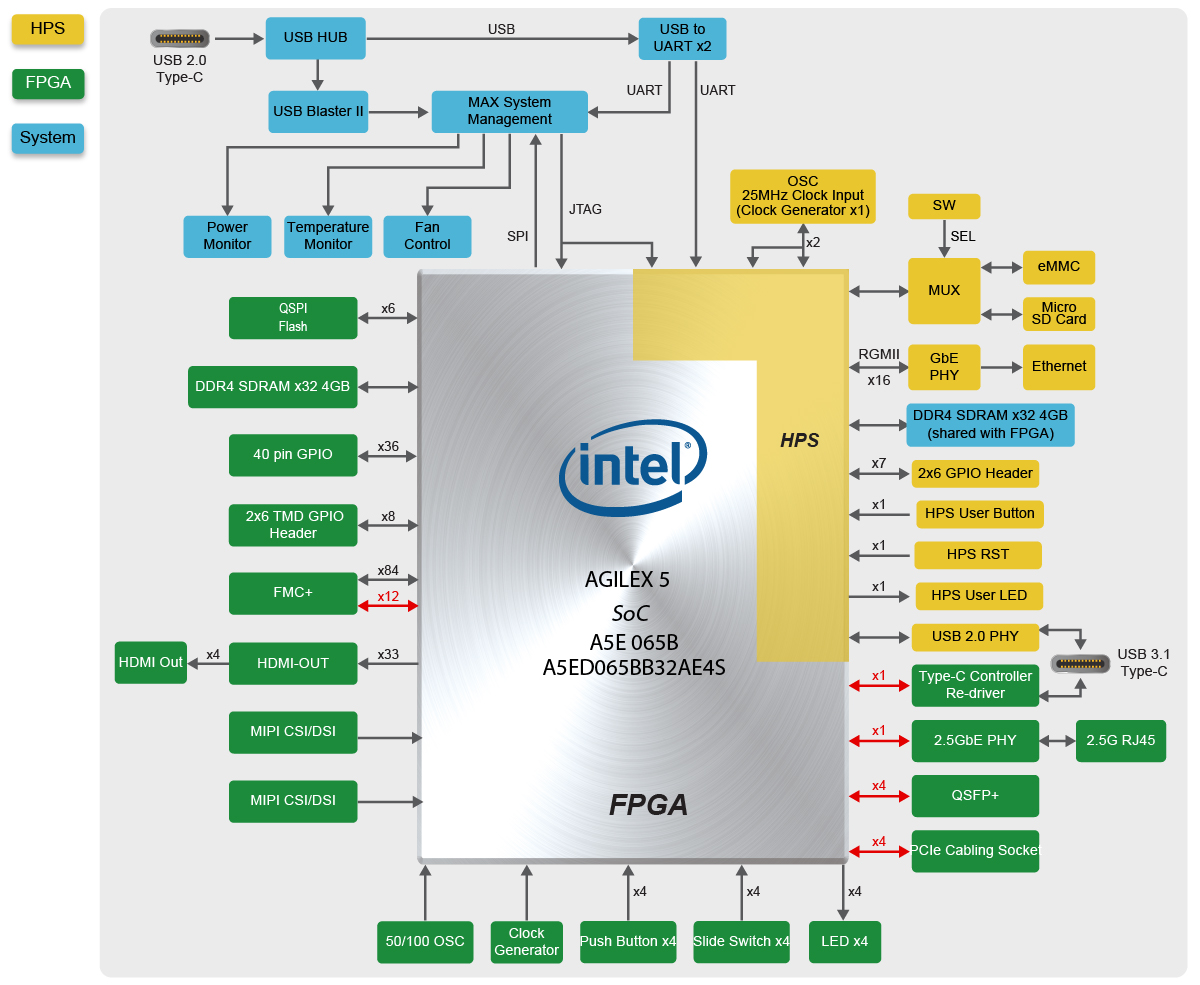

Block Diagram
Connection to FMC Daughter Card

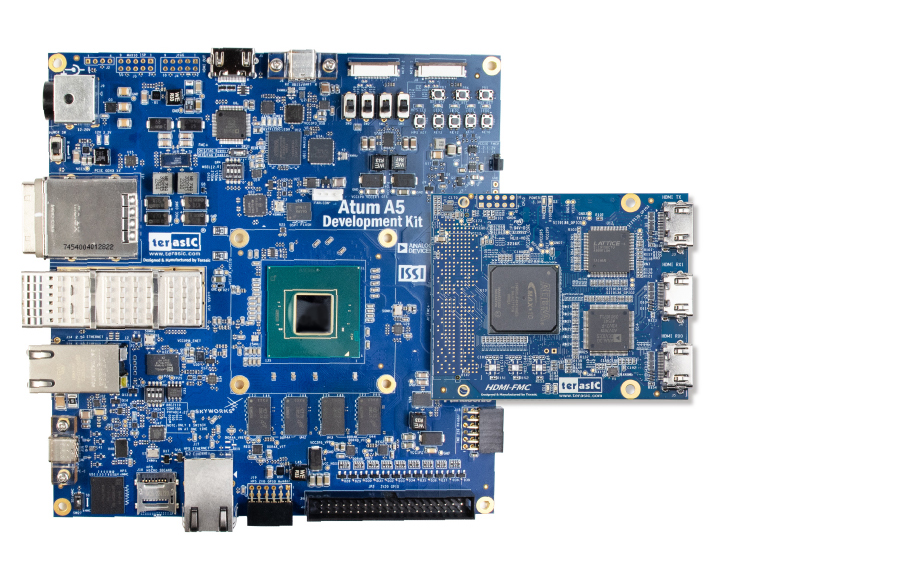

Connect to HDMI-FMC Daughter Card:

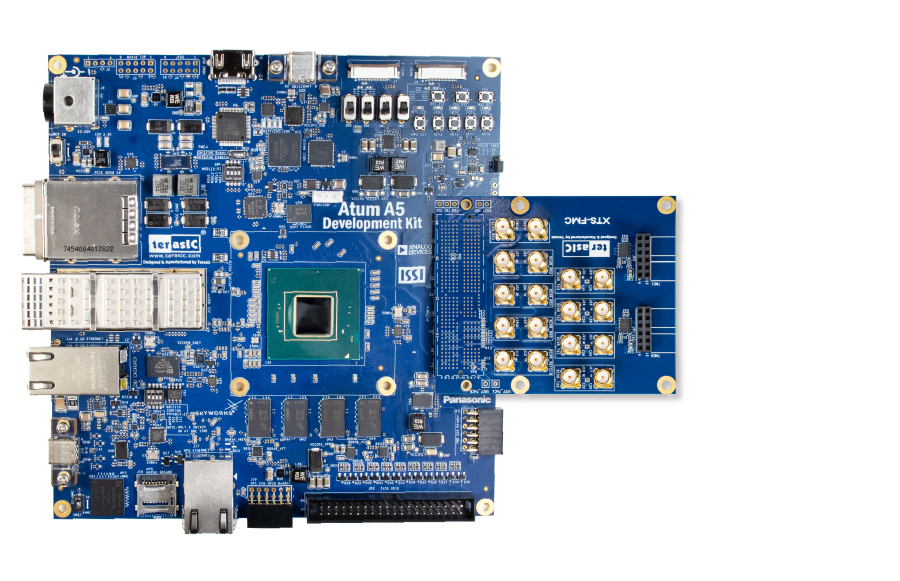

Connect to XTS-FMC Daughter Card:

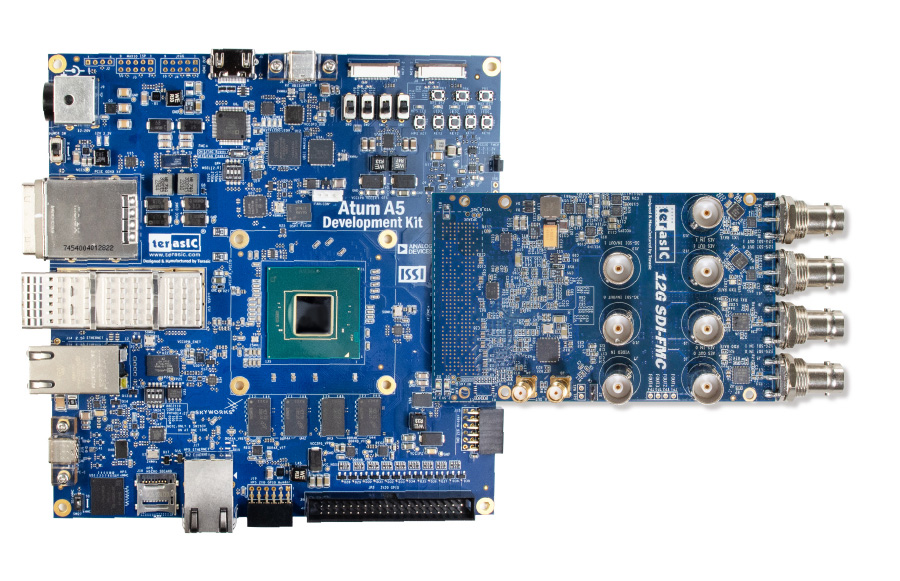

Connect to 12G SDI-FMC Daughter Card:
