Agilex SOM Module

• FPGA: Agilex AGFB014R24B2E2V (1400K LEs)
• Interface: FMC and FMC+ connector
• Dimension: 145 mm x 133 mm
• Onboard USB-Blaster II
• Support ASx4 Configure Mode with 1Gbits QSPI Flash
• Board Management System
  • Power Monitor
  • Temperature Monitor
  • Auto fan Control

FPGA side

• Two DDR4 SO-DIMM Sockets (each with 72-bit ECC, speed up to 2666MT/s, and size up to 32GB)
• Onboard QSFP28
• One FMC+ Connector for FMC/FMC+ Daughter Card
• One FMC Connector for FMC Daughter Card
• 1.2V 2x6 GPIO header
• LED x2, Button x2, DIP Switch x2, CPU Reset Button

HPS side

• Quad-core 64 bit Arm* Cortex*-A53 (up to 1.4GHz)
• MicroSD Socket
• One SO-DIMM shared with FPGA
• Gigabit Ethernet PHY + RJ45
• USB OTG PHY + Micro USB Connector
• UART-to-USB
• RTC
• LED x1, Button x1, Cold Reset Button
• 3.3V 2x6 GPIO header for GPIO/SPI/I2C/UART

Software Support

• FPGA Example Code Linux BSP

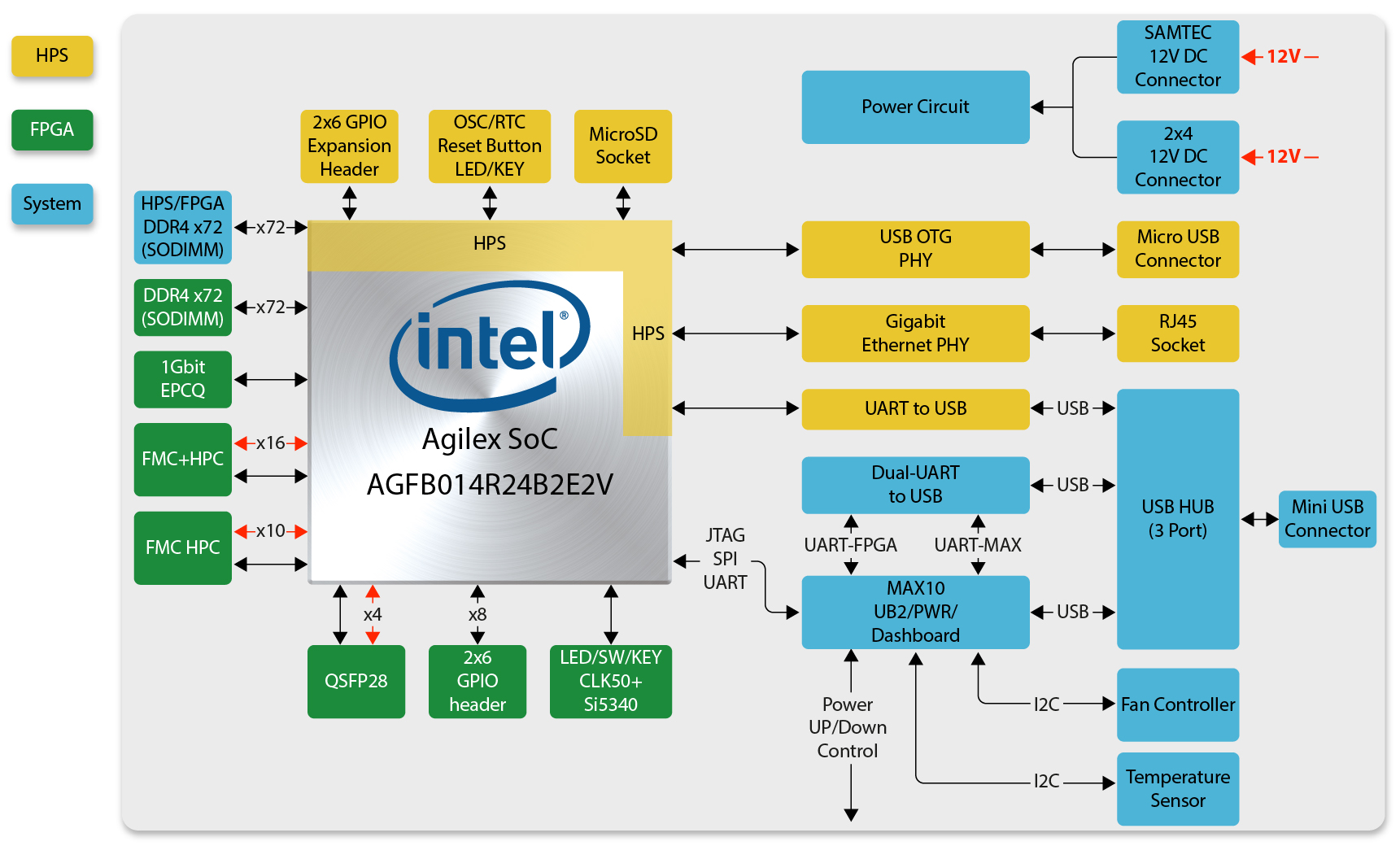

Block Diagram

Connection to FMC Daughter Card

• Connect to HDMI-FMC Daughter Card:

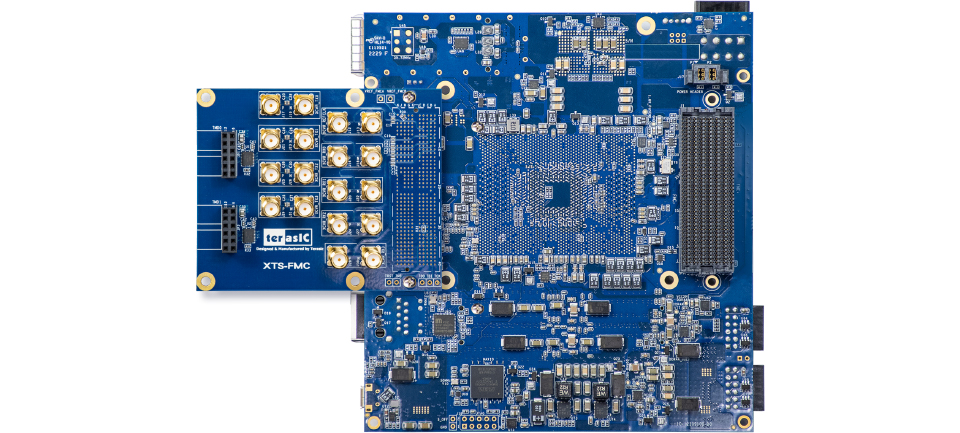

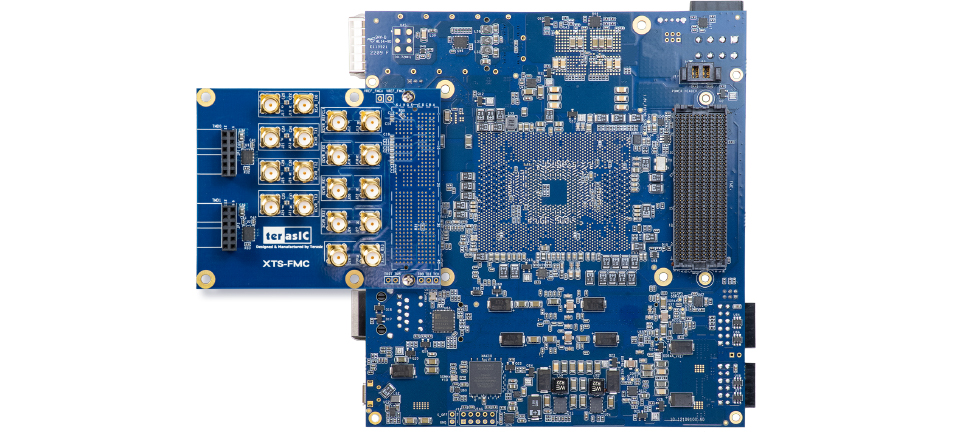

• Connect to XTS-FMC Daughter Card:

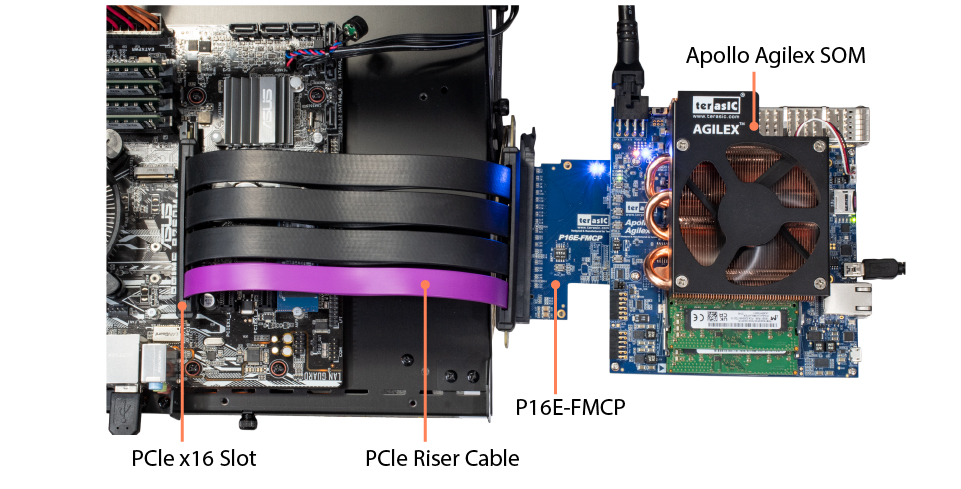

• Connect to P16E-FMCP Daughter Card:

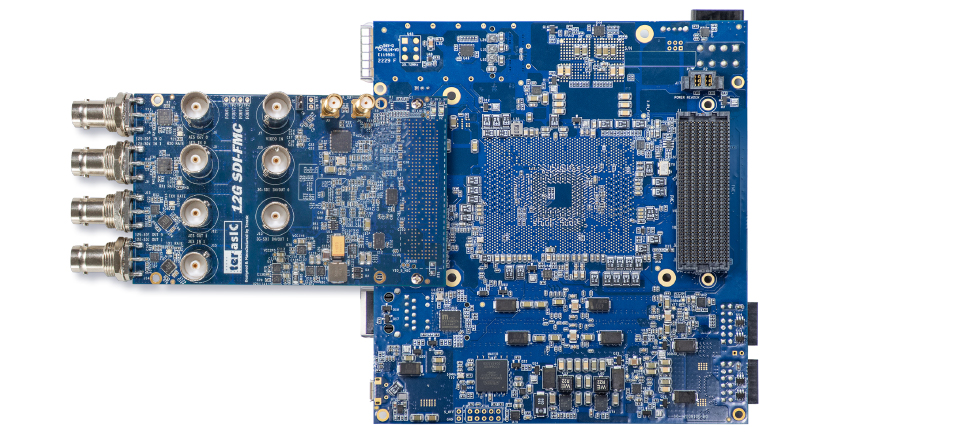

• Connect to 12G SDI-FMC Daughter Card:
