产品规格

• HSMC 界面
  • 8 段高速沟通接口支持 SATA/SAS 1.5Gbp, 3 Gbps 及 6Gbps 数据
  • 6 out-of-band signals 支援 4 线转接头
  • Dipswitch inputs on CMOS input section of HSMC
  • LED drive outputs for 16 bi-color LEDs (32接头)
• SATA / SAS Single lane interface
  • Internal style vertical surface mount connectors
• SATA / SAS 4 lane interface
  • Internal style 32 pin vertical surface mount connector
• ATX power
  • Standard ATX 4 pin connector providing 1 Amp on both 12V and 5V power rails from host boards able to support current
• 8 Kbit I2C EEPROM
• Differential clocking for 150MHz and 300MHz reference clocks through the HSMC or SMA connectors
• 尺寸:2mm x 3mm x 0.75mm (长 x 宽 x 高)

应用特色

• 储存装置 (硬盘, optical drives, and solid-state disks)
• PC’s
• SOHO 储存
• Set-top boxes
• 适用在任何需要长时间储存的数据上

连接性

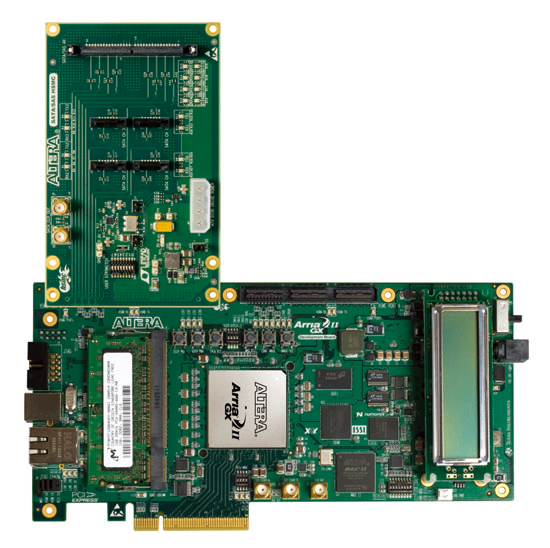

The SATA/SAS Daughter Card connects to the Arria II GX FPGA Development Kit

The SATA/SAS Daughter Card connects with Arria II GX FPGA Development Kit

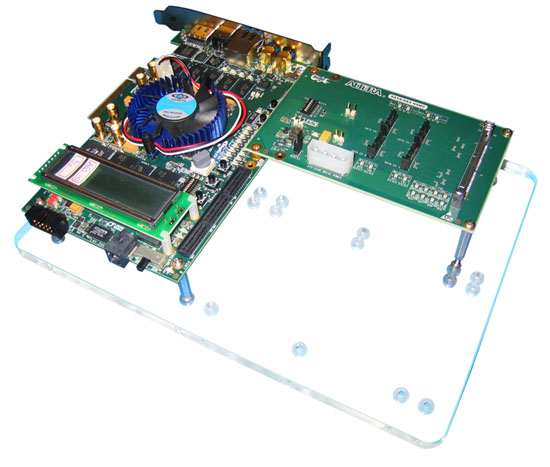

SATA/SAS HSMC Card connects to the Stratix IV GX FPGA Development Kit

SATA/SAS HSMC Card connection to the Stratix IV GX Development Board
