DE4 開發板主要的元件模組如下：

FPGA Devices

Stratix IV GX EP4SGX230

  • 228,000 logic elements (LEs)
  • 17,133K total memory Kbits
  • 1,288 18x18-bit multipliers blocks
  • 2 PCI Express hard IP blocks
  • 744 user I/Os
  • 8 phase locked loops (PLLs)

Stratix IV GX EP4SGX530

  • 531,200 logic elements (LEs)
  • 27,376K total memory Kbits
  • 1,024 18x18-bit multipliers blocks
  • 4 PCI Express hard IP Blocks
  • 744 user I/Os
  • 8 phase locked loops (PLLs)

FPGA Configuration

  • JTAG and Fast Passive Parallel (FPP) configuration
  • On-board USB Blaster

Memory Devices

  • 64 MB Flash with a 16-bit data bus
  • 2 MB ZBT SSRAM
  • I2C EEPROM

Two DDR2 SO-DIMM Sockets

  • 400 MHz clock rate
  • Maximum theoretical bandwidth of over 102 Gbps
  • Up to 8-Gbyte capacity in total

SD Card Socket

  • Provides SPI and 4-bit SD mode for SD Card access

Buttons, Switches and LEDs

  • 4 push-buttons
  • 4 slide switches
  • 8 LEDs
  • 8-position DIP switch

Two Seven Segments

  • Two independent seven segments

On-Board Clocks

  • 3 Programmable PLLs configured via FPGA
  • o HSMA, HSMB transceiver clock source
  • o SATA reference clock
  • o FPGA LVDS clock input
  • 50MHz/100MHz oscillator

SMA Connectors

  • 2 SMA connector for external transceiver clock input
  • 4 SMA connector for LVDS clock input/output
  • 2 SMA connectors for clock output
  • 1 SMA connector for external clock input

Four Serial ATA Ports

  • Support SATA 3.0 standard 6Gbps signaling rate
  • Two host and two device ports

Four Gigabit Ethernet Ports

  • Integrated 1.25 GHz SERDES

PCI Express x8 Edge Connector

  • Support connection speed of Gen1 at 2.5Gbps/lane to Gen2 at 5.0Gbps/lane
  • Connection established with PC motherboard with x8 or x16 PCI Express slot

Two 172-pins High Speed Mezzanine Card (HSMC)

  • 2 female-HSMC connectors
  • I/O voltage 2.5V
  • Total of 12 high-speed transceivers at 8.5 Gbps
  • Total of 38 LVDS pair at 1.6 Gbps

Two 40-pin Expansion Headers

  • 72 FPGA I/O pins, as well as 4 power and ground lines, are brought out to two 40-pin expansion connectors
  • 40-pin header is designed to accept a standard 40-pin ribbon cable used for IDE hard drives
  • I/O voltage 3.0V

USB Host/Slave Controller

  • Complies fully with Universal Serial Bus Specification Rev. 2.0
  • Support data transfer at high-speed, full-speed, and low-speed
  • Support both USB host and device
  • Three USB ports (one type mini-AB for host/device and two type A for host)
  • Support Programmed I/O (PIO) and Direct Memory Access (DMA)

Power

  • DC input 12V and 3.3V
  • PCI Express edge connector power
  • Support PCI Express external standard power source
  • On-Board power measurement circuitry

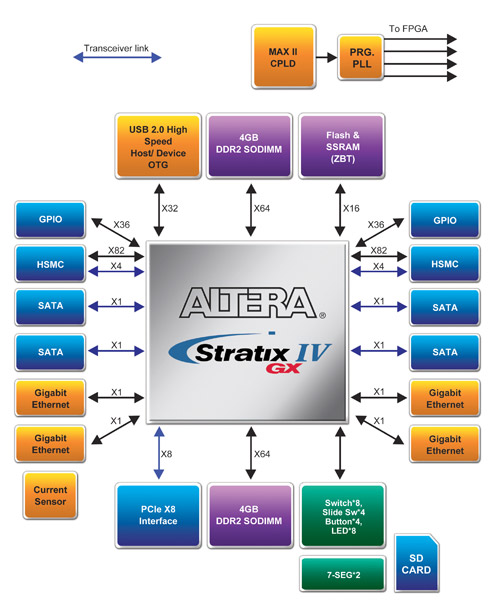

Block Diagram

　　 MTL 介面連接示意圖

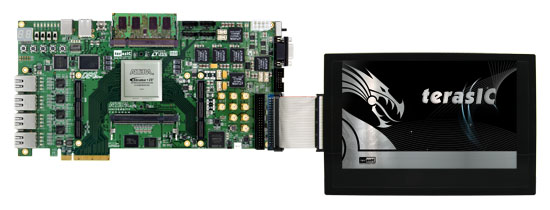

  • MTL 與 DE4 連接示意圖

　　 D5M 介面連接示意圖

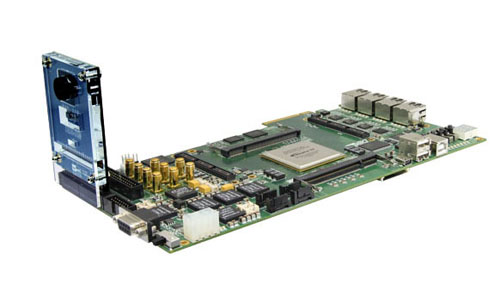

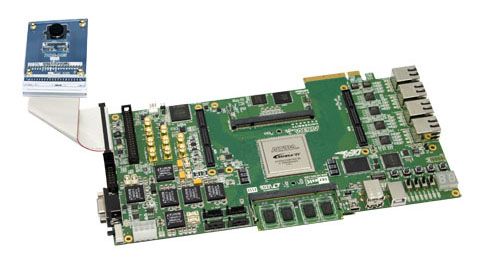

  • D5M 與 DE4 連接示意圖

　　 LTM 介面連接示意圖

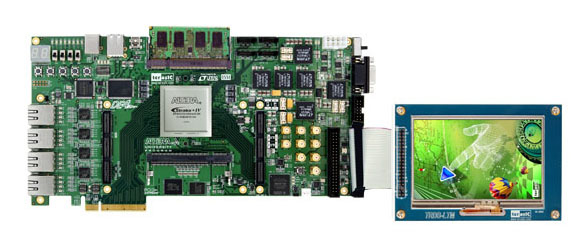

  • LTM 與 DE4 連接示意圖

　　 DVI-HSMC 介面連接示意圖

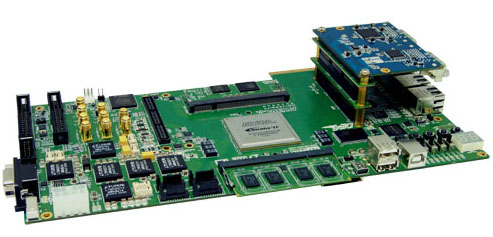

  • DVI-HSMC 與 DE4 連接示意圖
    備註 : 連接時需使用兩塊  HMF2 轉接板 , 此轉接板已內含 DE4 產品中

　　 SFP-HSMC 介面連接示意圖

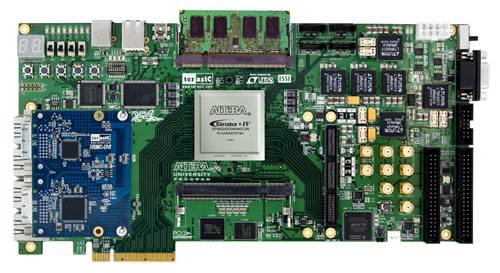

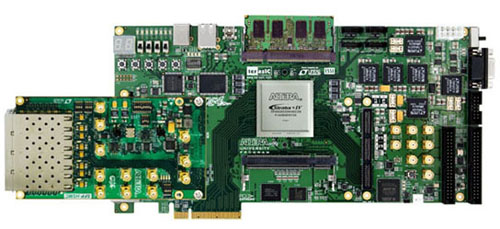

  • SFP-HSMC 與 DE4 連接示意圖



　　 SDI-HSMC 介面連接示意圖

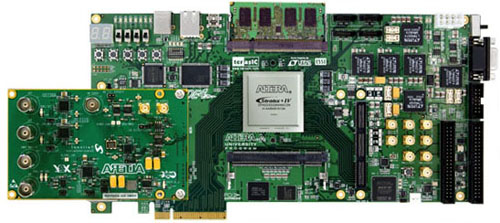

  • SDI-HSMC 與 DE4 連接示意圖

　　 ADA-HSMC 介面連接示意圖

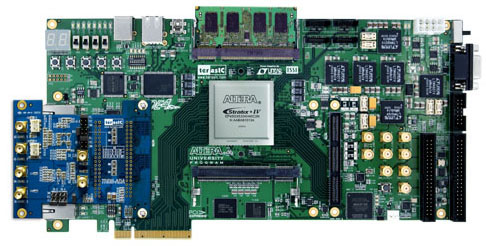

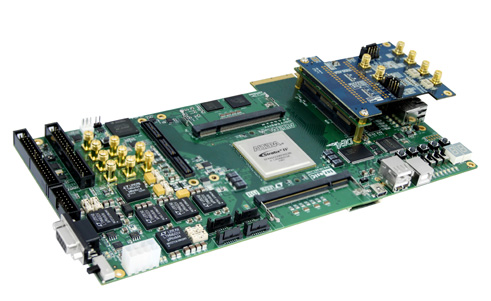

  • ADA-HSMC 與 DE4 連接示意圖
    備註 : 連接時需使用一塊  HMF2 轉接板 , 此轉接板已內含於 DE4 產品中

　　 DCC-HSMC 介面連接示意圖

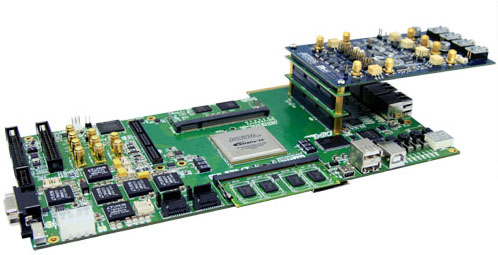

  • DCC-HSMC 與 DE4 連接示意圖
    備註 : 連接時需使用兩塊  HMF2 轉接板 , 此轉接板已內含於 DE4 產品中

　　 HTG 介面連接示意圖

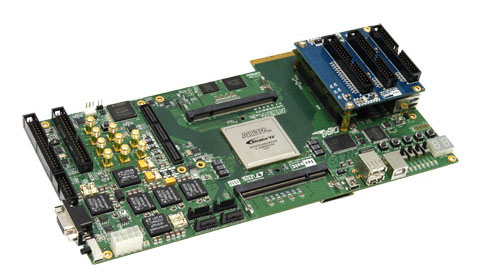

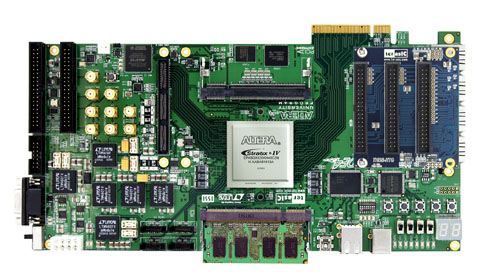

  • HTG 與 DE4 連接示意圖
    備註 : 連接時需使用一塊  HMF2 轉接板 , 此轉接板已內含於 DE4 產品中

　　 COMM 介面連接示意圖

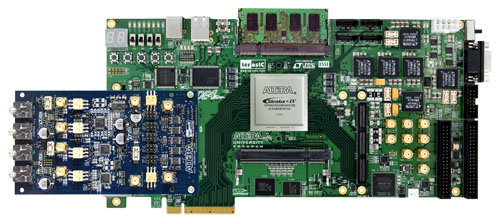

  • COMM 與 DE4 連接示意圖
    備註 : 連接時需使用一塊  HMF2 轉接板 , 此轉接板已內含於 DE4 產品中




　　 MSV 介面連接示意圖

  • MSV 與 DE4 連接示意圖
    備註 : 連接時需使用一塊  HMF2 轉接板 , 此轉接板已內含於 DE4 產品中
