产品规格

• 240(H) x320 (V) 像素分辨率的 LCD 与 65K RGB 颜色
• 单电阻式触控
• 2x20 GPIO 接口

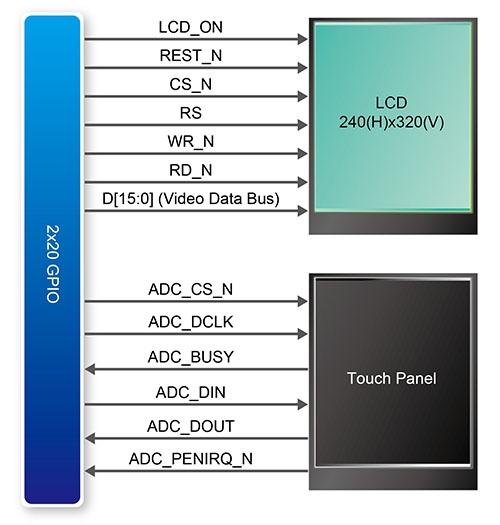

功能框图

连接

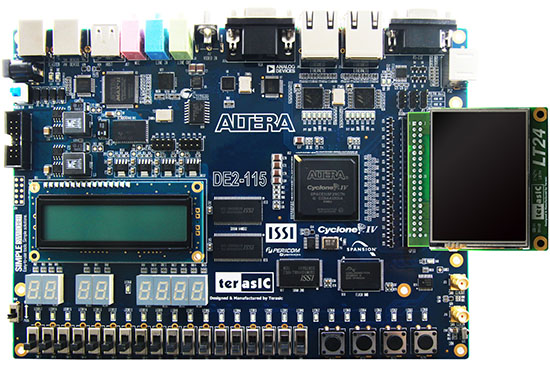

• LT24 与 DE2-115 连接

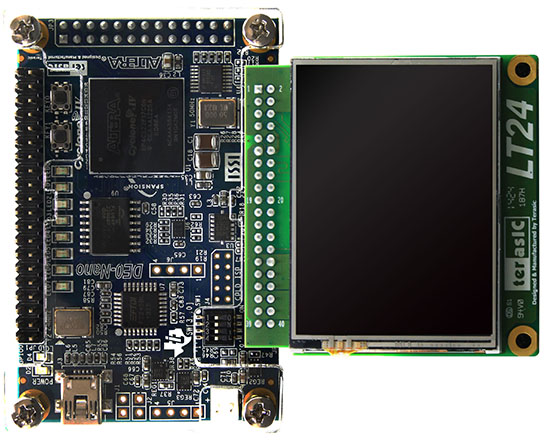

• The LT24 Daughter Card connects to the DE0-Nano

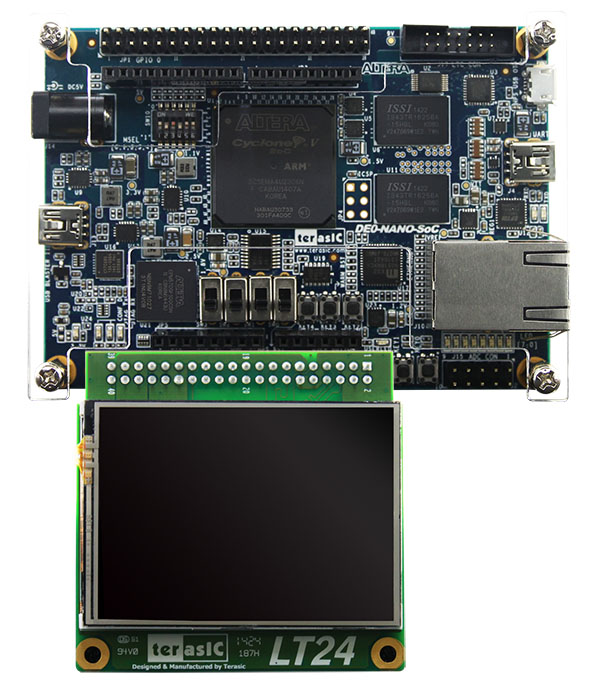

• The LT24 Daughter Card connects to the DE0-Nano-SoC (Atlas-SoC)

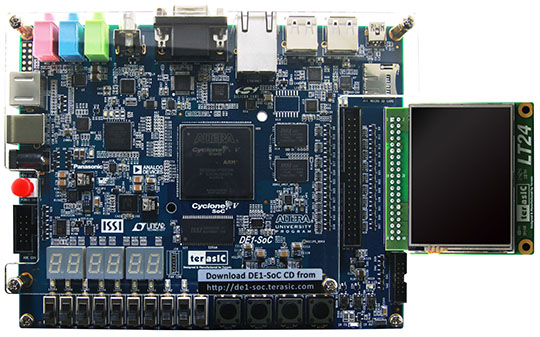

• The LT24 Daughter Card connects to the DE1-SoC

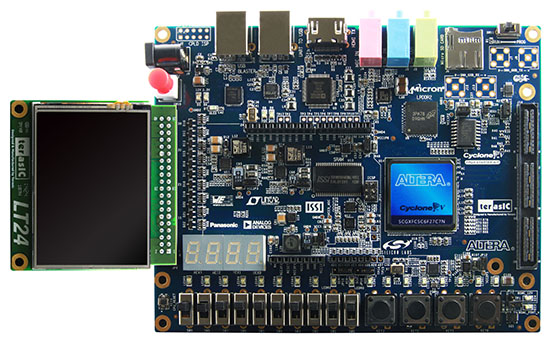

• The LT24 Daughter Card connects to the Cycone V GX Starter Kit (C5G)

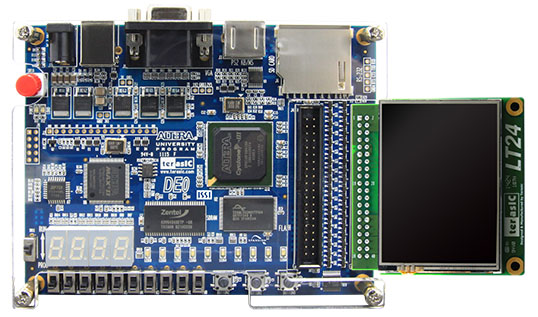

• The LT24 Daughter Card connects to the DE0

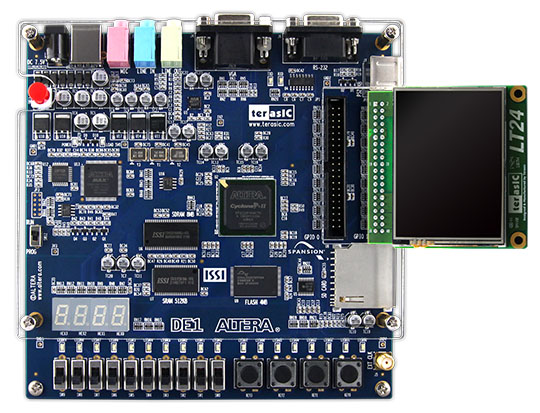

• The LT24 Daughter Card connects to the DE1

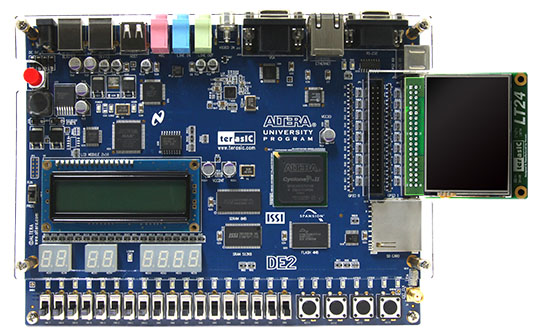

• The LT24 Daughter Card connects to the DE2

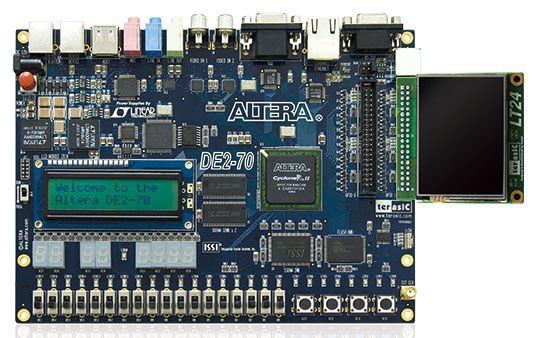

• The LT24 Daughter Card connects to the DE2-70
