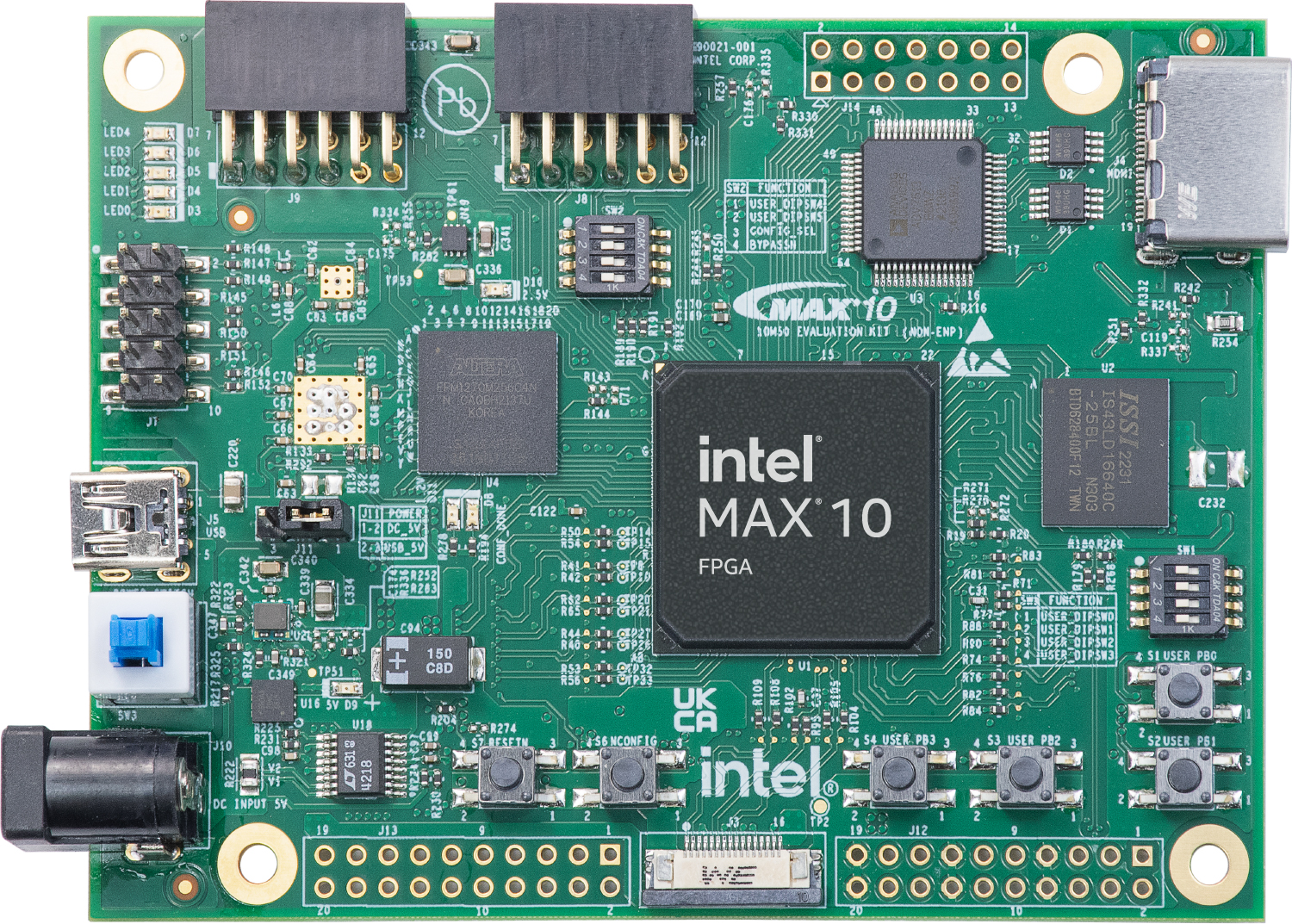

Intel® MAX® 10 FPGA 10M50 Evaluation Kit

Intel® MAX® 10 FPGA 10M50 Evaluation Kit

The Intel® MAX® 10 FPGA 10M50 Evaluation Kit provides an easy-to-use platform for evaluating the Intel® MAX® 10 FPGA technology and Intel® Enpirion® regulators.

You can use this kit to:

  • Develop designs for the 10M50D, F484 package FPGA
  • Validate MIPI CSI-2 passive D-PHY solutions for both MIPI Rx or Tx implementation within the FPGA (MIPI cameras and IP sold separately)
  • Demonstrate video applications using the on-board HDMI output capability
  • Interface the FPGA to the LPDDR2 memory at 200 MHz performance
  • Read and write to the FPGA’s NOR flash memory
  • Interface with daughtercards and peripherals using the Digilent Pmod* compatible connectors
  • Bridge to external devices through single ended user I/O or LVDS I/O using the through-hole vias
  • Measure FPGA power (VCC_CORE)
  • Reuse the kit’s PCB board and schematic as a model for your design
